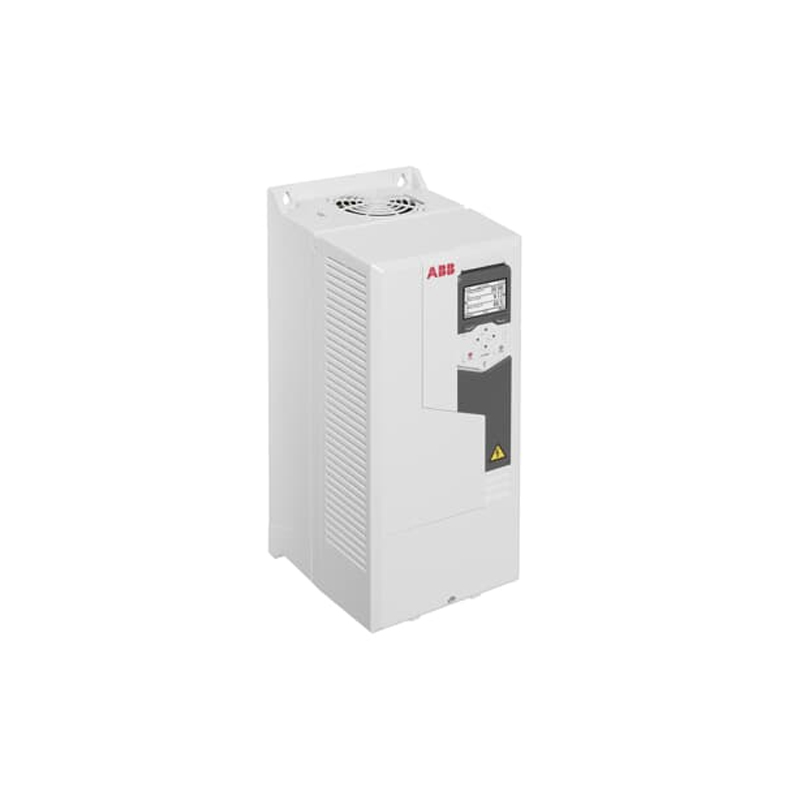

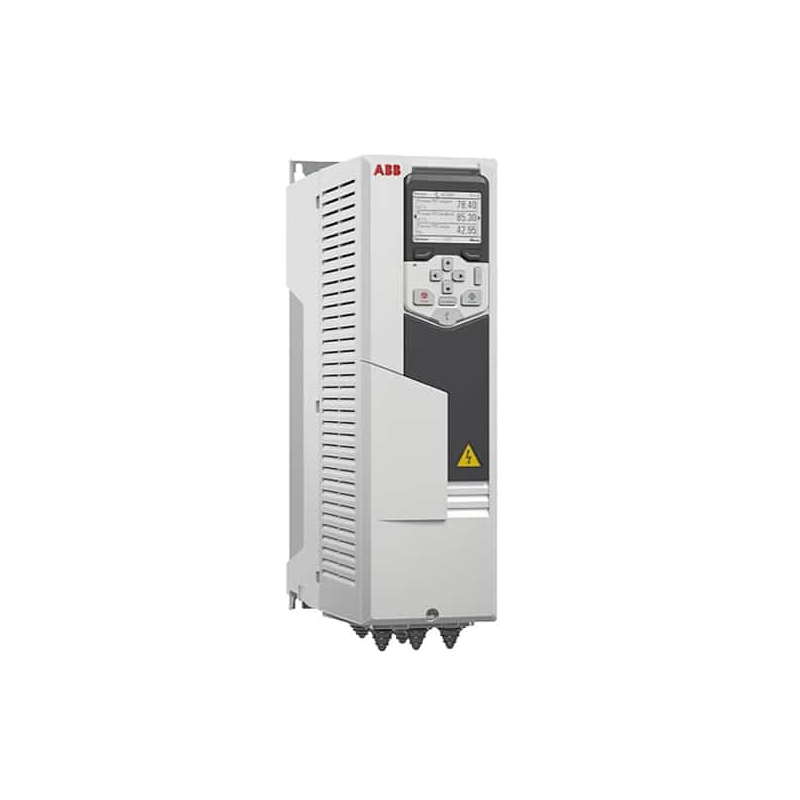

ABB ACS580 series AC Inverter for 18.5kW (25HP) 400V 3 Ph motor to 37.7A at high overload or 22kW (30HP) to 42.8A when Fan/Pump rated. Operates in VxF, Sensorless Vector or Full Closed-loop Flux Vector (when an optional Encoder Feedback card is fitted). Converts fixed frequency Three Phase 400V input to variable frequency 400V to control the speed of a standard AC induction motor.
Size R3: 203mm Wide x 229mm Deep x 490mm High (glandbox is integrated). IP21.
Overload: 150% x 60 seconds every 10 minutes (High Overload)
Overload: 110% x 60 seconds every 10 minutes (Fan/Pump rated)
Speed Control Range: 0-500Hz.
Braking: To 10 Ohm minimum, 22 Ohm maximum external resistor to 25kW (not supplied)
Supplied with
Operator Keypad (Assistant Control Panel)
2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Contact Sets, terminals for RS-485/Modbus RTU communications, terminals for dual channel SIL3 safe torque off (STO), 24V AC/DC input to power the control unit when the main supply is disconnected.
Input Current: [as output current]
Input Voltage: 380-480V Three Phase +10% -15% at 50-60Hz ±5%
