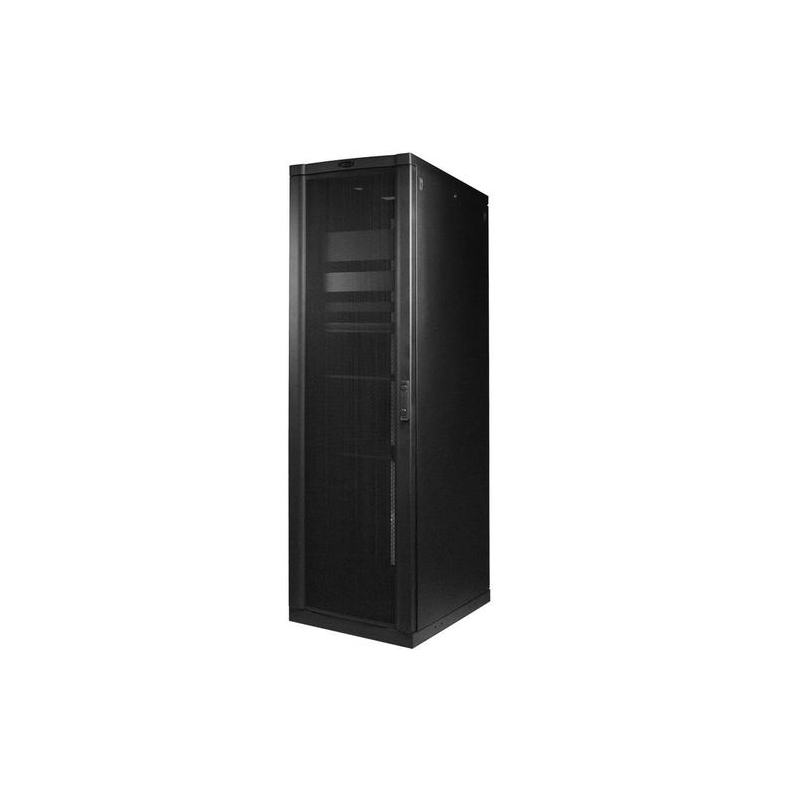

Back-up UPS Power LBS300
    发布时间: 2023-12-17 19:55

Battery Module：M48100
Cell Chemistry：LiFePO4
Nominal Capacity (kWh)：30.7
Rated Voltage (Vdc)：51.2DC
Voltage Range (Vdc)：40~58.4

Back-up UPS Power LBS300

Battery Module

M48100

Cell Chemistry

LiFePO4

Nominal Capacity (kWh)

30.7

Rated Voltage (Vdc)

51.2

DC Voltage Range (Vdc)

40~58.4

Peak Power Capability (kVA）*

20

Max Input/Output Current (A) **

300

Standard Input/Output Current (A)

200

Battery Rack Dimension (mm)

600W x 600D X 1500H

Module Numbers (pcs)

6

Est. Weight (KG)

450

Ingress Protection

IP55

Communication

RS485 / CAN / RJ45

Operating Temperature (℃)

-10～50

Humidity (RH)

5% ~ 95%

Altitude (m)

≤3000
