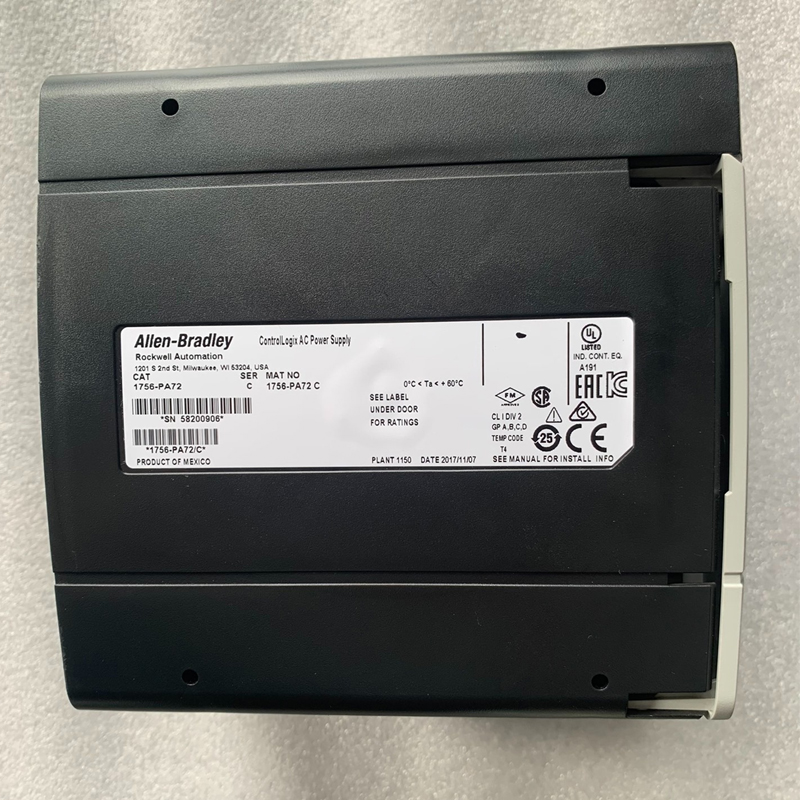

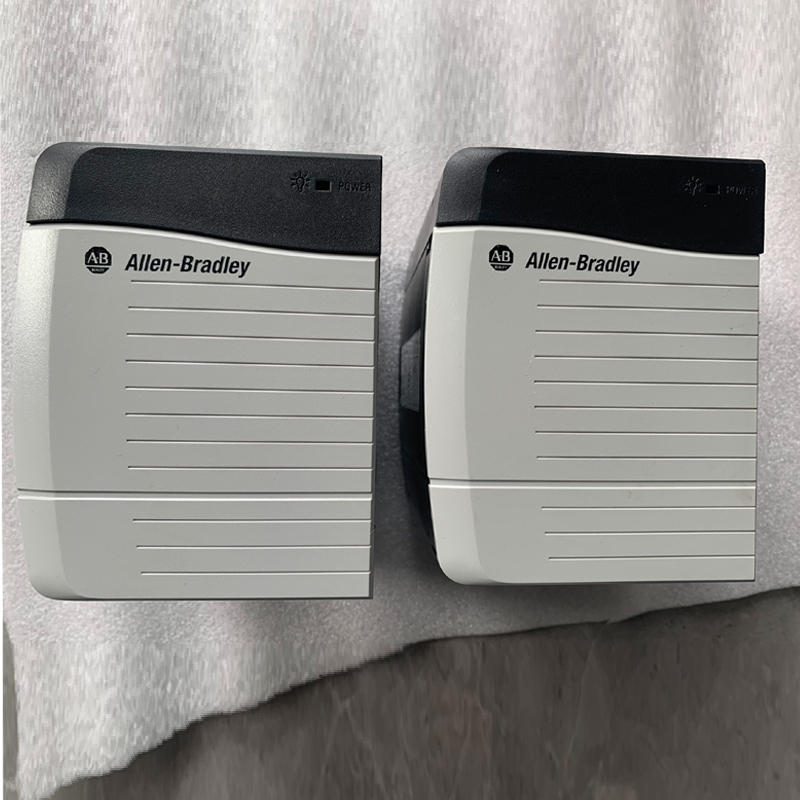

1756-PA72 - Allen Bradley ControlLogix
发布时间: 2024-08-05 20:35
The Allen-Bradley 1756-PA72 is a ControlLogix Standard Power Supply. This Power Supply has an input Voltage of 85-265VAC with Nominal supply of 120V/240VAC. It has a Current capacity of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F).
Technical specifications for 1756-PA72 Manufacturer Rockwell Automation Dimensions 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) Weight 0.95 kg (2.10 lb) Module Type Standard DC Power Supply Series ControlLogix Part Number/Catalog No. 1756-PA72 Brand Allen-Bradley Nom Input Voltage 120/240VAC Input Voltage Range 85-265VAC Isolation Voltage 250 Volts Continuous Max Inrush Current 30 Amperes Current Capacity 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC Hold Up time 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz Location 1756 Chassis Left Side Chassis Compatibility 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C Input Voltage 120-240 Volts AC Voltage Range 85-265 Volts AC Input Power 100 Watts Input Frequency 47-63 Hertz Power Output 75 Watts at 60 Celsius Chassis Series A or B Location Chassis - Left Side Operating Temperature 32-140 Fahrenheit (0-60 Celsius) Enclosure None UPC 10612598172594
