Laying of cable installation temperature should not be less than 0℃
Cable bending radius: Cablebengdingradius:non-armored cable a minimum of 6 times the cable diameter;Fluoride plastic insulated and sheathed cable with a minimum of 8 times the cable diameter
Application: This product is suitable for AC rated voltage 450/750V electrical instru mentation and automatic control system cable transmission line, with oil, water, abrasion, acid and a varity of corrosive gas, anti-aging, non-combustion and excellent performance for metallurgy, electric power, petrochemical and other industries.

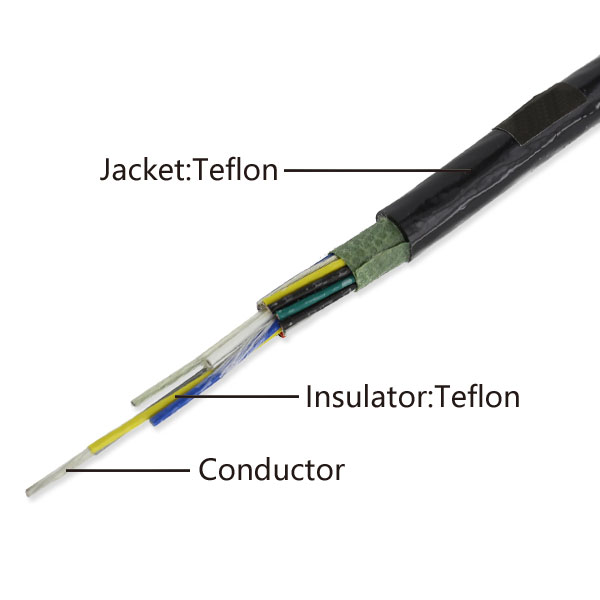

Structure of Conductor
Insulation
Jacket
Electrical Properties
Sectional Area mm²
No./mm
Thickness (mm)
Diame
ter (mm)
Thickness (mm)
Average Diameter (mm)
Max.Conductor Resistance DC 20'C Ω/km
2ｘ0.35
19/0.16
0.25
1.30
0.25
3.10
50
3ｘ0.35
19/0.16
0.25
1.30
0.25
3.20
50
4ｘ0.35
19/0.16
0.25
1.30
0.25
3.65
50
5ｘ0.35
19/0.16
0.25
1.30
0.30
4.10
50
6ｘ0.35
19/0.16
0.25
1.30
0.30
4.50
50
7ｘ0.35
19/0.16
0.25
1.30
0.30
4.50
50
2ｘ0.5
19/0.18
0.25
1.40
0.25
3.30
36
3ｘ0.5
19/0.18
0.25
1.40
0.25
3.40
36
4ｘ0.5
19/0.18
0.25
1.40
0.30
4.00
36
5ｘ0.5
19/0.18
0.25
1.40
0.30
4.40
36
6ｘ0.5
19/0.18
0.25
1.40
0.30
4.80
36
7ｘ0.5
19/0.18
0.25
1.40
0.30
4.80
36
2ｘ0.75
19/0.23
0.25
1.70
0.30
4.00
23
3ｘ0.75
19/0.23
0.25
1.70
0.30
4.00
23
4ｘ0.75
19/0.23
0.25
1.70
0.30
4.70
23
5ｘ0.75
19/0.23
0.25
1.70
0.35
5.30
23
6ｘ0.75
19/0.23
0.25
1.70
0.35
5.80
23
7ｘ0.75
19/0.23
0.25
1.70
0.35
5.80
23
2ｘ1
19/0.26
0.25
1.80
0.30
4.20
19
3ｘ1
19/0.26
0.25
1.80
0.35
4.30
19
4ｘ1
19/0.26
0.25
1.80
0.35
5.10
19
5ｘ1
19/0.26
0.25
1.80
0.35
5.60
19
6ｘ1
19/0.26
0.25
1.80
0.40
6.20
19
7ｘ1
19/0.26
0.25
1.80
0.40
6.20
19
Code names and meanings
Name
Code
Meaning of codes
series of codes
K
Control cable
Insulation materials
F
Poly FEP(F46)maximum operating temperature of 200'C
Soluble Teflon (PFA)maximum operating temperature of 260'C
Sheath material
F
Poly FEP(F46)maximum operating temperature of 200'C
Soluble Teflon (PFA)maximum operating temperature of 260'C
V
Polyvinyl chloride (PVC)
G
Silicone rubber
Flame retardant properties
ZR(V)
Flame retardant PVC（Three kinds of 70'C、90'C、105'C）
The main technical indicators
Finished cable conductor DC resistance (in accordance with the provisions of GB3956)
20'Cwhen the insulation resistance of not less than 500MΩ/KM
Finished cable communication 50HZ3.0KV/5min withstand voltage test without breakdown
