• TECHNICAL DATA
Nominal voltage: 500V
Temperature Range: -60℃~+800℃
OD. Tolerance: ±0.1MM

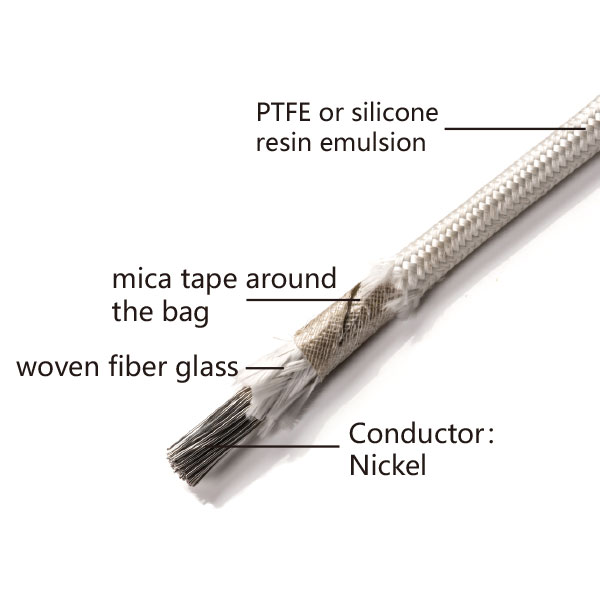

Conductor: Nickel
Insulator: Fiberglass+Mica tape+Fiberglass+PTFE or
silicone resin emulsion
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Application: Electric heating, petrochemical, electrical and mechanical equipment, power
plant, drying path, drying room, heating source for lighting, electric
appliances etc.
Sectional Structure of Conductor Outer Diameter Electrical Properties(mm) Packing No./mm (mm) Max. Conductor M/coil 0.5 7ｘ0.30 2.6±0.3 160.40 200 0.8 11ｘ0.30 2.7±0.3 106.80 200 1.0 14ｘ0.30 2.8±0.3 80.00 200 1.2 40ｘ0.30 3.0±0.3 68.00 100 1.5 21ｘ0.30 3.0±0.3 68.00 100 2.0 28ｘ0.30 3.3±0.3 54.80 100 2.5 35ｘ0.30 3.6±0.5 42.00 100 4.0 56ｘ0.30 4.5±0.5 32.80 100 6.0 84ｘ0.30 5.5±0.5 20.40 100 10.0 140ｘ0.30 6.6±0.5 13.60 100 16.0 228ｘ0.30 7.8±0.5 7.80 100 25.0 361ｘ0.30 9.5±0.5 4.96 100 35.0 494ｘ0.30 11.2±1.0 3.18 100 50.0 703ｘ0.30 13.2±1.0 2.26 100 70.0 988ｘ0.30 15.4±1.0 1.58 100 95.0 960ｘ0.40 17.4±1.0 1.11 100
