Weintek cMT Series cMT-FHDX-820
    发布时间: 2023-12-16 21:46

Weintek HMI for external touchscreen monitor


cMT-FHDX inherits all the rich HMI functionality found in the cMT series. Without touchscreen and LCD, this HDMI-enabled unit can work with screens of any size, so that screen size is no longer a limitation. It also allows touch control via USB connection, which can be an industrial touchscreen monitor with USB interface or an USB mouse.

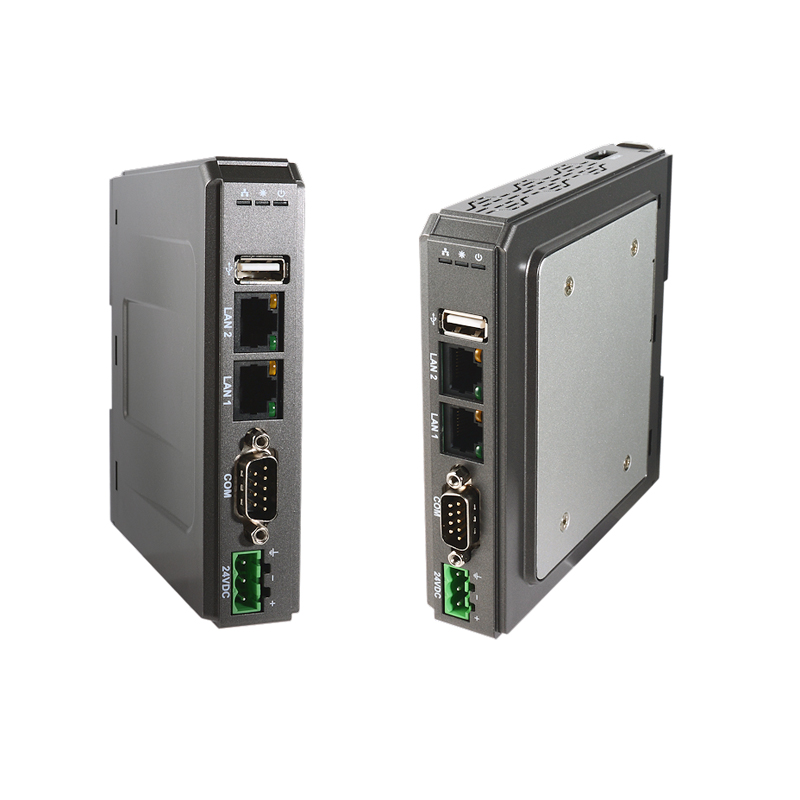

Weintek cMT Series cMT-FHDX-820

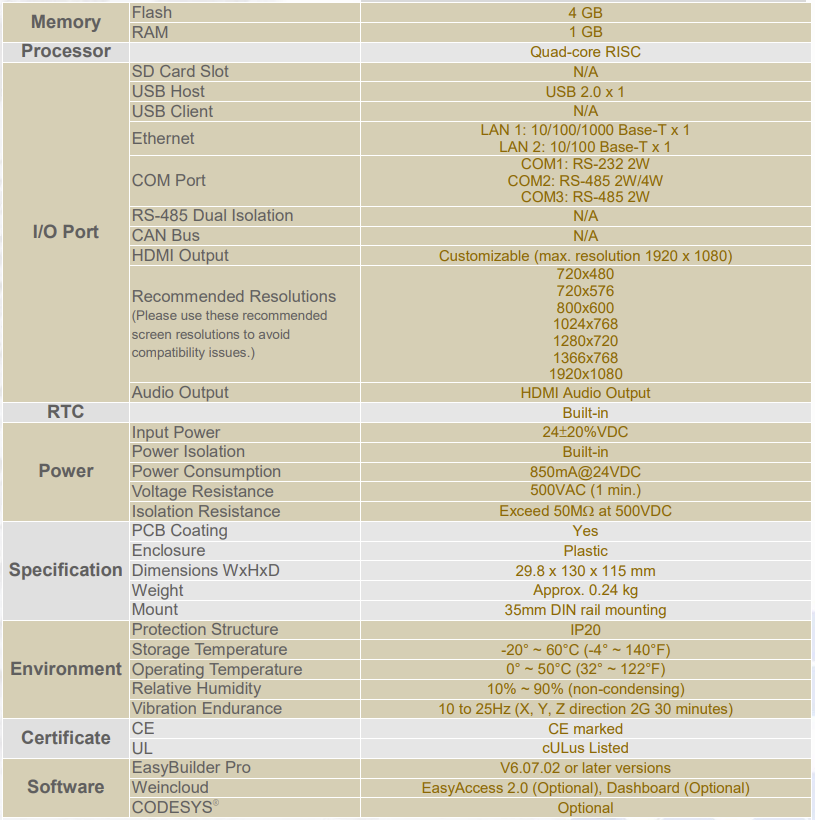

Specifications

  • Short Description

  • Weintek HMI for external touchscreen monitor, Quad-core  CPU 32 bits RISC  1,6GHz  with High Performance dedicated 3D Processor, max. project size 64MB. Ports: HDMI, USB, serial 2 x Ethernet

  • Specifications

  • cMT-FHDX-820:

    • Seperates Server and Graphical User Interface

    • Connects to industrial touchscreen monitor or TV

    • Resolution: Customizable (max. 1920 x 1080)

    • Processor: 1,6 GHz RISC Quad-core Cortex-A17 CPU
      with High Performance dedicated 3D Processor

    • Memory: 4 GB Flash / 1 GB RAM

    • Project & Firmware size limit: 64MB
      History size limit: 40 samples, 10,000 records/sample

    • RS232/485, 1 x 10/100/1000 Mbps Ethernet, 1 x 10/100 Mbps Ethernet

    • USB ports: 1 USB 2.0 host port

    • Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
