Specifications

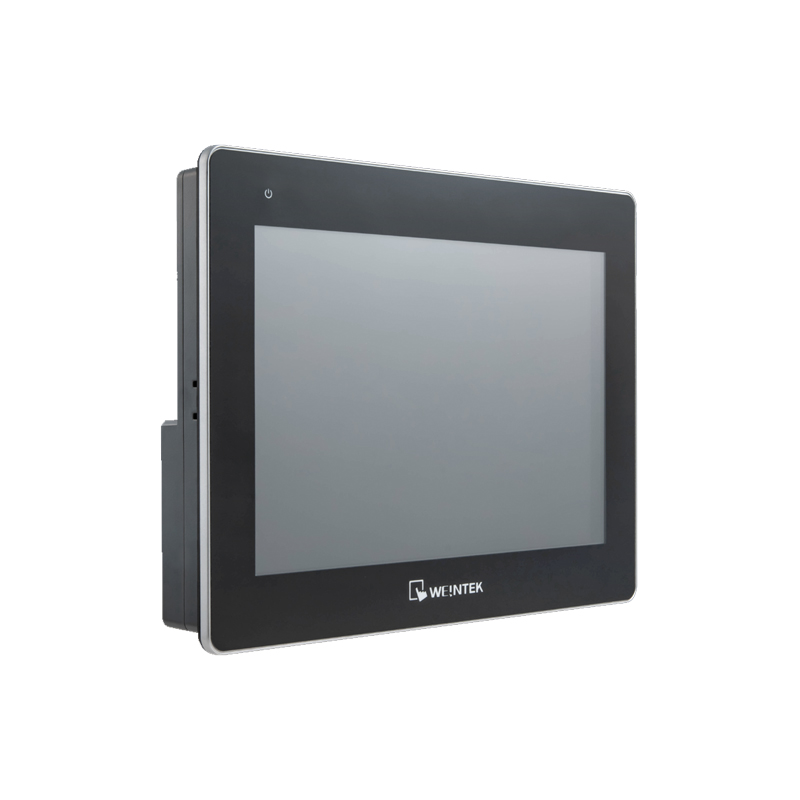

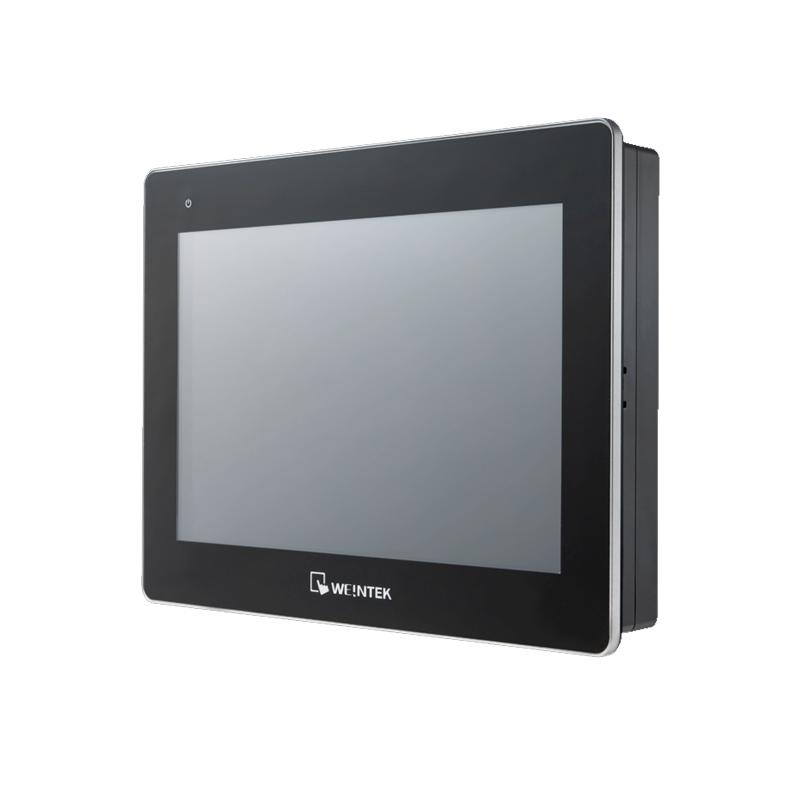

• Weintek 10.1" HMI, plastic housing, res.touch, 1280x800, Quad-core Risc CPU. Ports: CANbus, serial, USB & 2x Ethernet. Comp. with M02 WiFi.

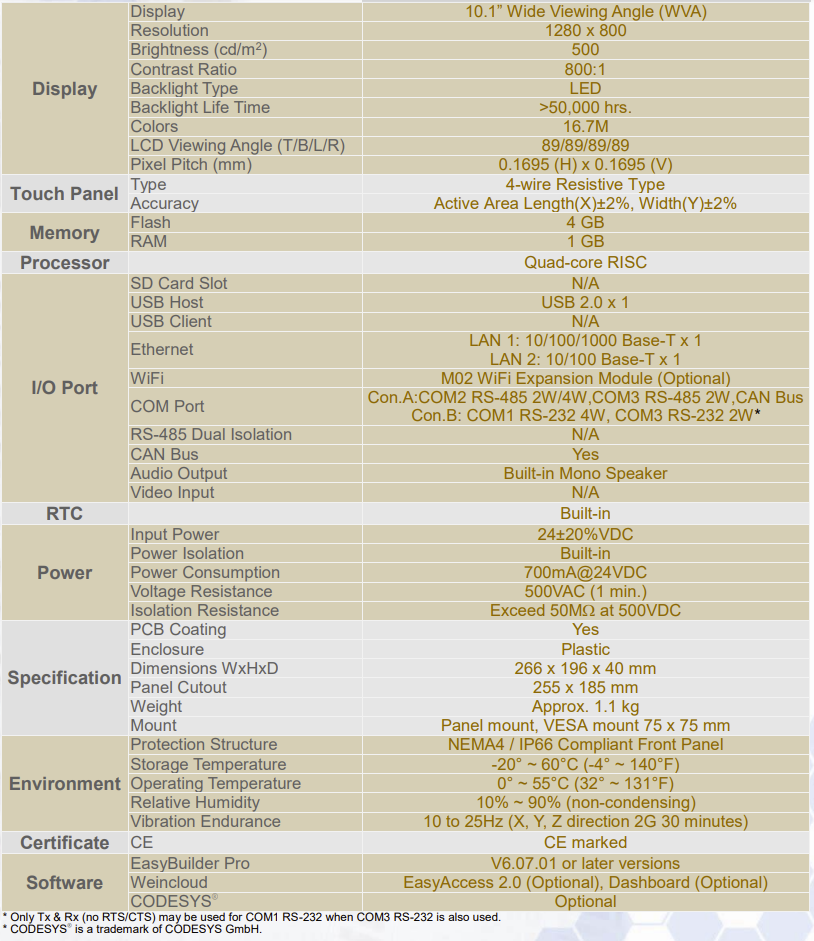

cMT3108XH HMI:

• 10.1" wide screen TFT display (16.7M colors)

• Resolution: 1280 x 800 pixels

• Brightness: 500 cd/m²

• Contrast ratio: 800:1

• Touch screen: Analog resistive

• Processor: Quad-core Risc

• History size limit: 40 samples, 10,000 records/sample

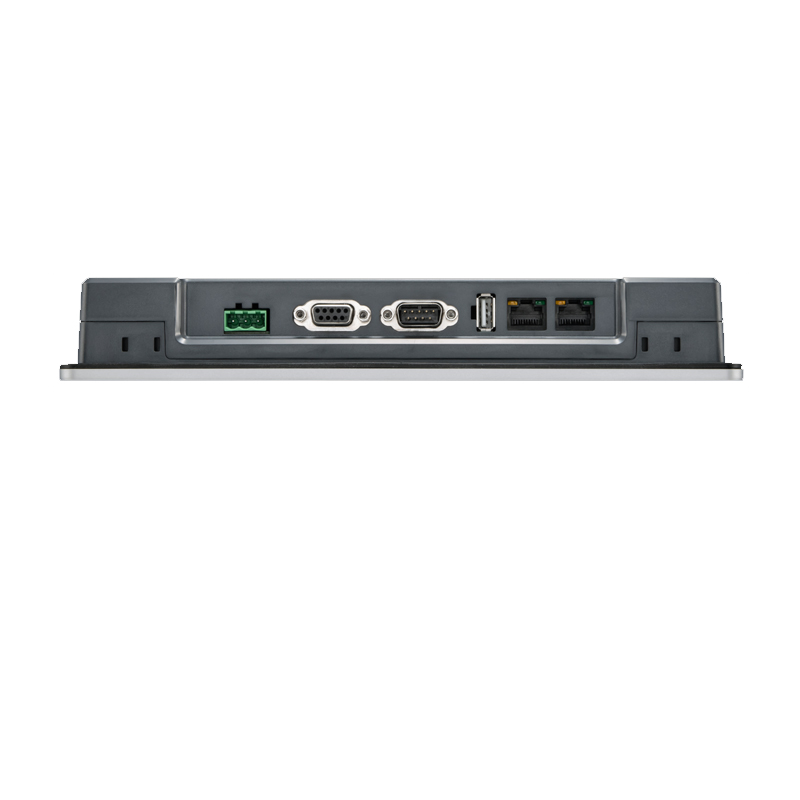

• PLC interface: CANbus, RS232/485, 1 x 10/100/1000 Mbps Ethernet, 1 x 10/100 Mbps Ethernet

• USB ports: 1 USB 2.0 host port
  (for connection of keyboard, mouse, barcode scanner, printer, etc.)

• Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone

• Real Time Clock / Calendar

• Power supply: Isolated 24 VDC input

• Enclosure: Plastic

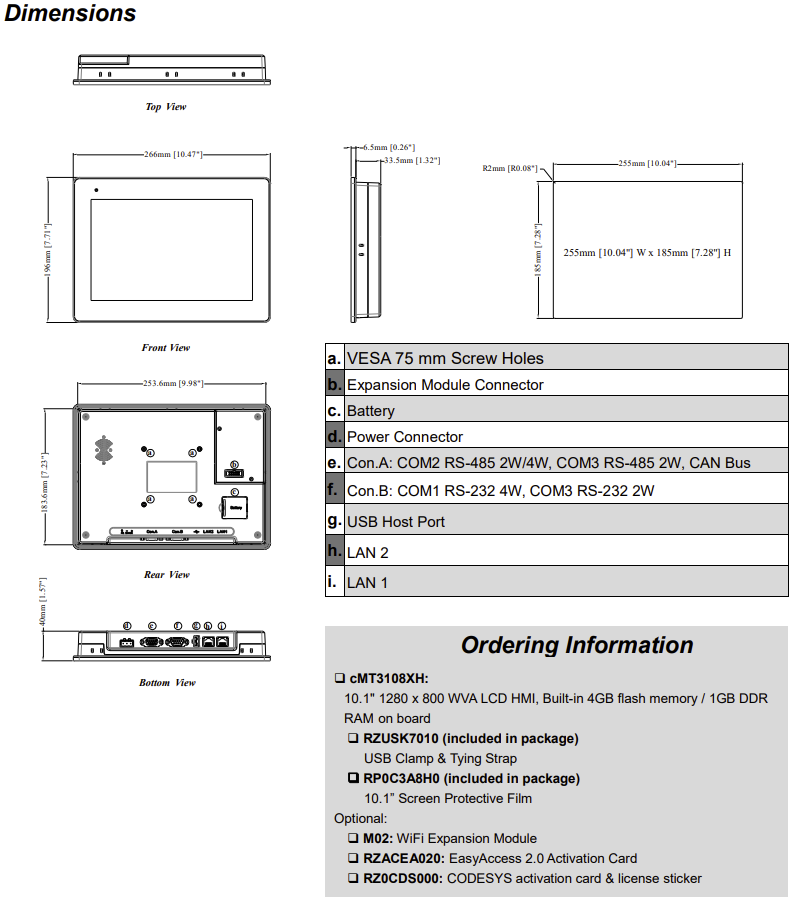

• Mounting: Panel mount, VESA mount 75 x 75 mm

Note: CAN Bus interface supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939 protocols

Compatible with M02 WiFi Expansion Module that supports
wireless communication.
