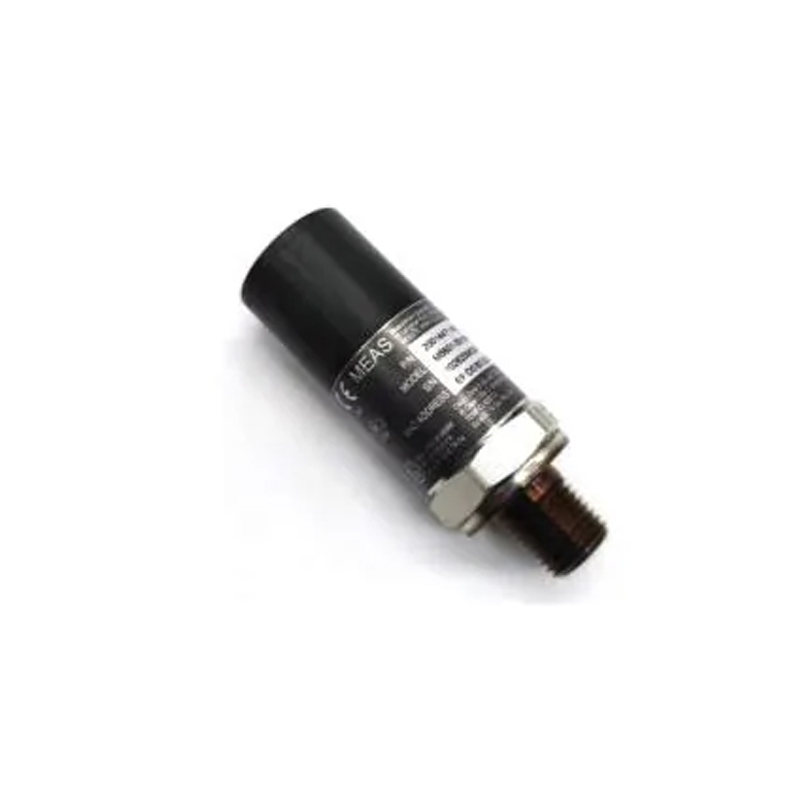

TE Connectivity Pressure Sensors M5601-001205-01KPS
发布时间: 2023-12-16 22:31

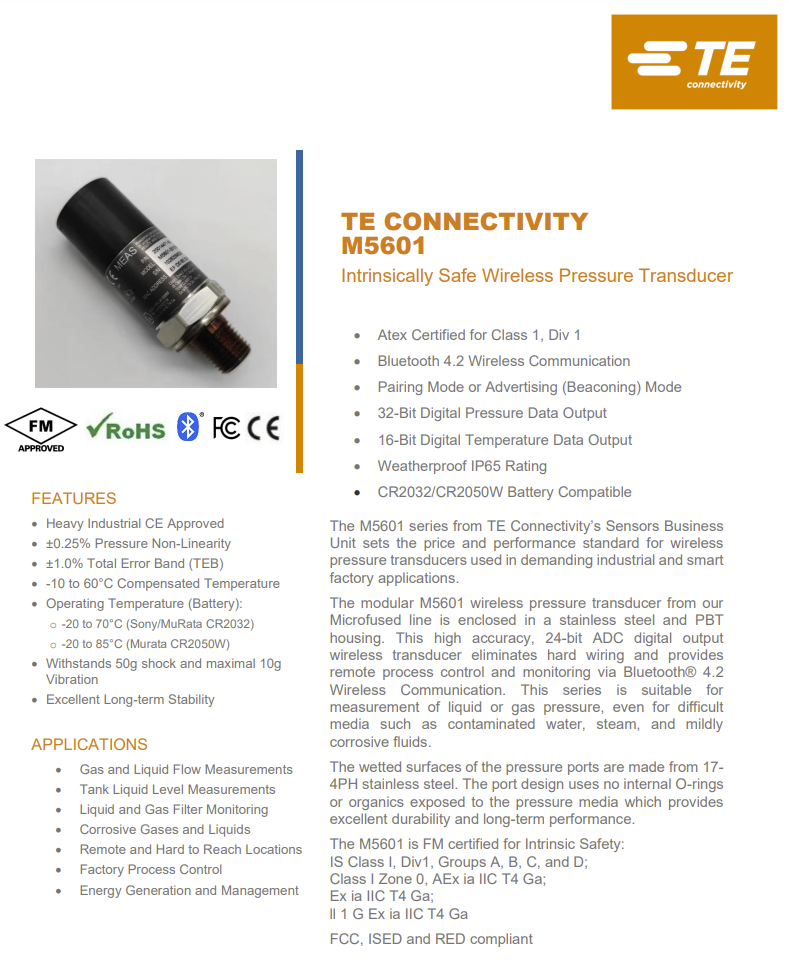

TE CONNECTIVITY
M5601
Intrinsically Safe Wireless Pressure Transducer
Pressure Transducer Sensor Type : Industrial Pressure Transducer
Pressure Range : 0 – 1000 psi
Hazardous Area Approval : Intrinsically Safe
Pressure Type : Sealed
Pressure Transducer Supply Voltage (V): 2.7
PRESS XDCR
M5601-001205- 01KPS
Product Type Features
Pressure Transducer Sensor Type : Industrial Pressure Transducer
Pressure Type : Sealed
Configuration Features
Electrical Connection : No Connector
Pressure Port/Fitting : 1/4-18 NPT
Electrical Characteristics
Pressure Transducer Supply Voltage (V): 2.7

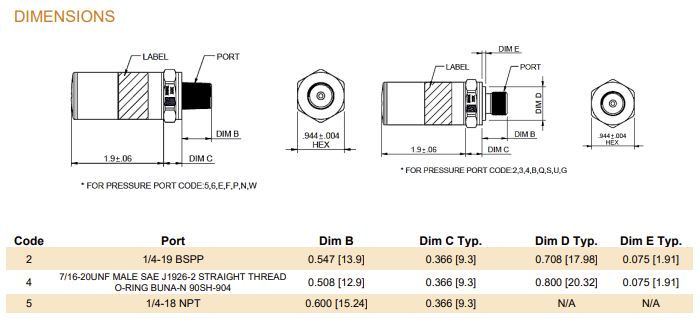

Dimensions
Dimensions : 24.0 x 24.0 x 72.8 mm [ .944 x .944 x 2.866 in ]
Usage Conditions
Pressure : 68.9 bar [ 1000 psi ]
Operating Temperature Range : -20 – 60 °C [ 14 – 140 °F ]
Operation/Application
Proof Pressure Range : 3X Rated
Pressure Range : 0 – 1000 psi

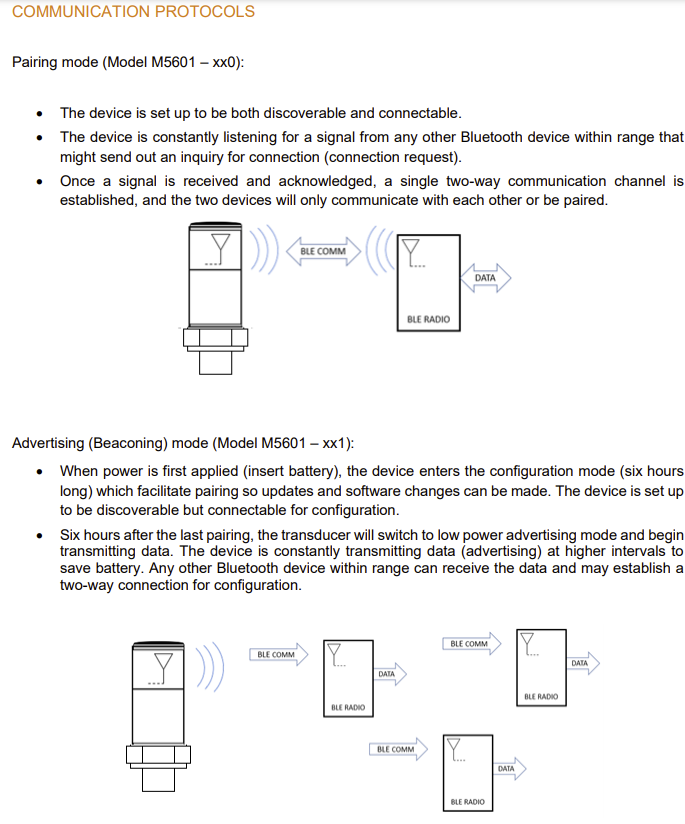

Output/Span : Bluetooth
Pressure Accuracy : ±0.25% FSO
Industry Standards

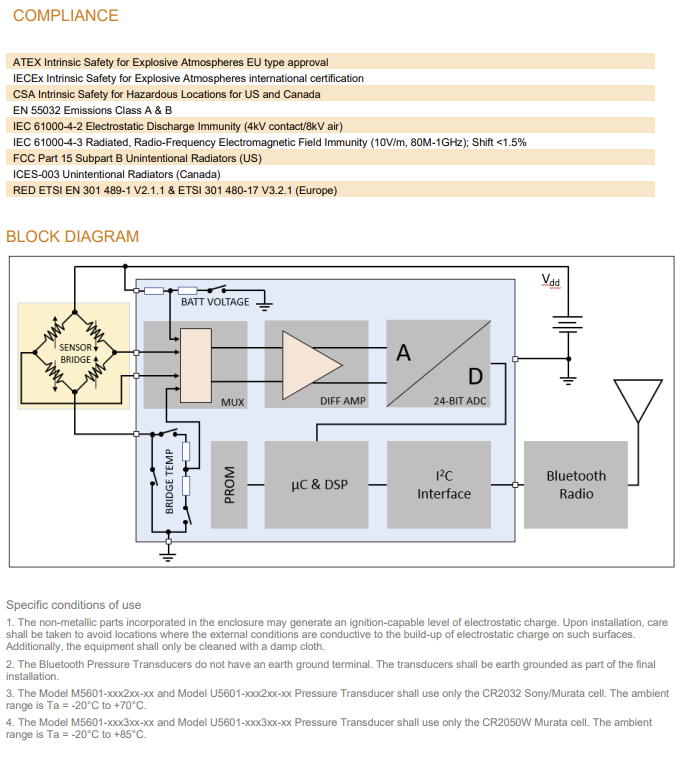

Hazardous Area Approval : Intrinsically Safe
Other
Sensor Options : Adhesive Label
