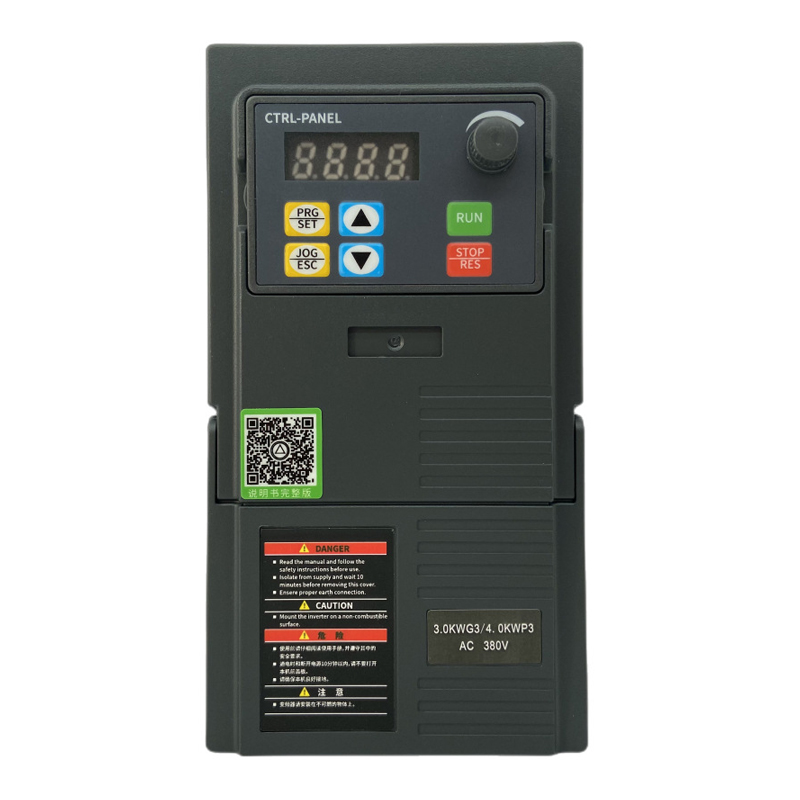

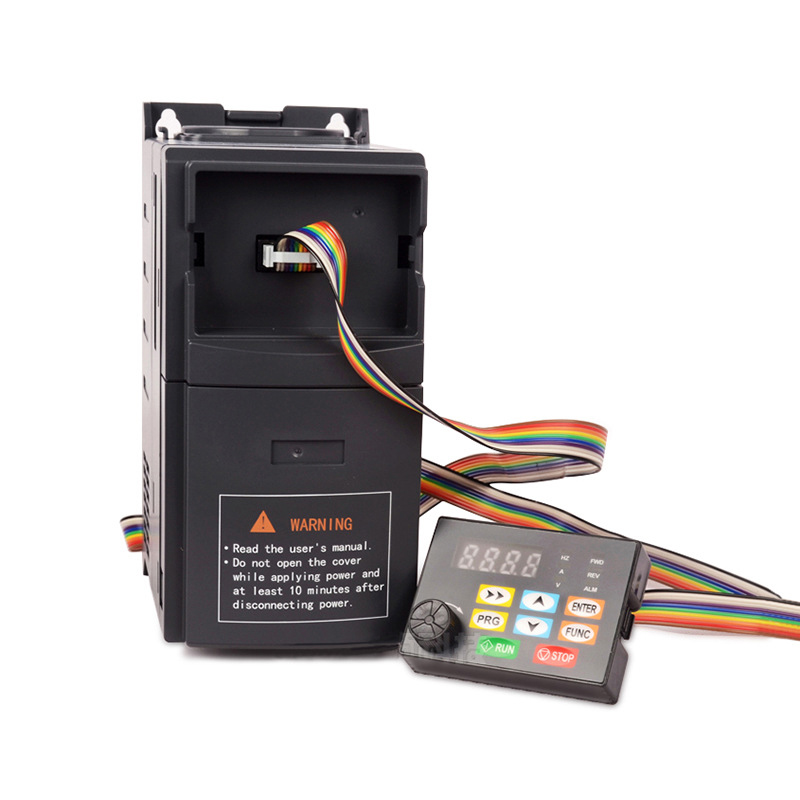

320 Series Exquisite Open-Loop Vector Inverter
    发布时间: 2023-12-17 18:31

With open-loop vector drive function, it can realize lowspeed and high-torque application scenarios;

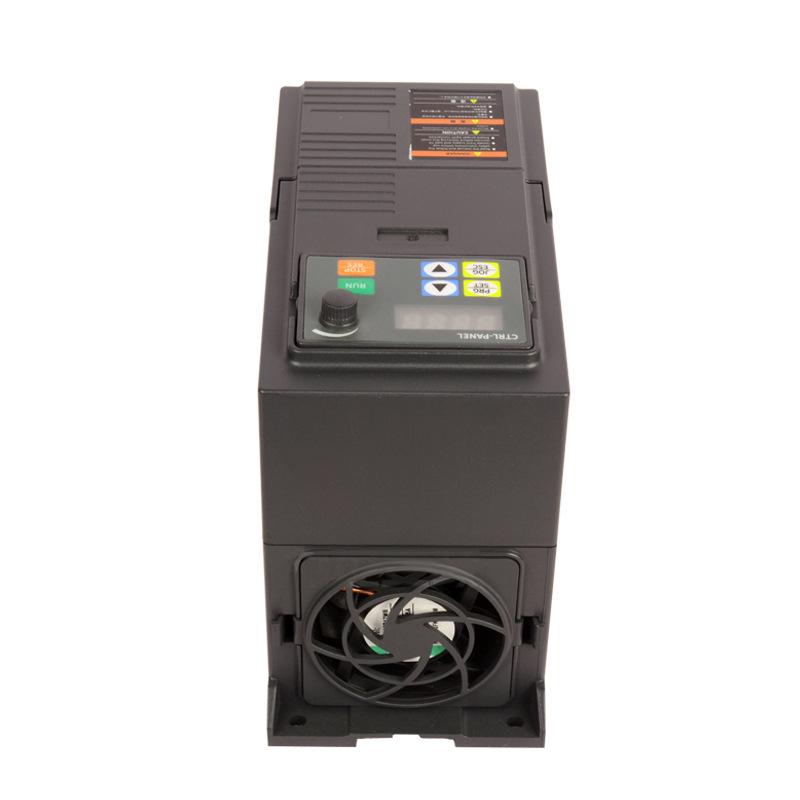

The heat dissipation air duct is completely sealed, with strong environmental resistance, good heat dissipation effect and excellent performance:

V/F control, large torque output, strong starting ability with load;

It can exert more than 80% of the control performance without learning;

Suitable for multi-scene mode applications (such as smart small water pumps, engraving machines, etc.);

Complete protection functions, with output phase loss, over-current, over-voltage, overload, over-temperature and other functions, to maximize the safety of the motor and frequency converter.

320 Series Exquisite Open-Loop Vector Inverter

ü320 Series

•Exquisite Open-Loop Vector Inverter

a)With open-loop vector drive function, it can realize lowspeed and high-torque application scenarios;

b)The heat dissipation air duct is completely sealed, with strong environmental resistance, good heat dissipation effect and excellent performance:

c)V/F control, large torque output, strong starting ability with load;

d)It can exert more than 80% of the control performance without learning; e)Suitable for multi-scene mode applications (such as smart small water pumps, engraving machines, etc.);

f)Complete protection functions, with output phase loss, over-current, over-voltage, overload, over-temperature and other functions, to maximize the safety of the motor and frequency converter.


Series

Model

Power

Input Power Source

Output
    Voltage

Output  Frequency

Output
    Current(A)

Overall
    Dimension(L*D*
    H/MM)

Packing
   Dimension(L*D*H/
    MM)

Net   Weight(KG)

Gross    Weight(KG)

SIT320S1

SIT320-0.75S1

0.75KW

AC 1PH 200V-240V
    50Hz-60Hz
    DC 150-400V
    (MPPT)

AC 3PH
    Q-240V

0-400Hz

3.8

170*79*127

180*90*135

0.8

1.0

SIT320-1.5S1

1.5KW

7

SIT320-2.2S1

2.2KW

9

187*86*144

190*100*160

1.0

1.1

SIT320-3.0S1

3.0KW

13

216*101*151

275*170*215

1.4

1.7

SIT320-4.0S1

4.0KW

15

237*111*168

275*170*215

2.0

2.3

SIT320-5.5S1

5.5KW

20

SIT320S3

SIT320-0.75S3

0.75KW

AC 3PH 200V-240V
    50Hz-60Hz
    DC 150-400V
    (MPPT)

AC 3PH
    0-240V

0-400Hz

3.8

170*79*127

180*90*135

0.80

1.00

SIT320-1.5S3

1.5KW

7

SIT320-2.253

2.2KW

9

187*86*144

190*100*160

1.0

1.1

SIT320-3.0S3

3.0KW

13

216*101*151

275*170*215

1.4

1.7

SIT320-4.0S3

4.0KW

15

237*111*168

275*170*215

2.0

2.3

SIT320-5.5S3

5.5KW

20

SIT320G3

SIT320-0.75G3

0.75KW

AC 3PH 340V-440V
    50Hz-60Hz
    DC 250-800V
    (MPPT)

AC 3PH
    0-440V

0-400Hz

2.1

170*79*127

180*90*135

0.8

1.0

SIT320-1.5G3

1.5KW

3.8

SIT320-2.2G3

2.2KW

5.1

187*86*144

190*100*160

1.0

1.1

SIT320-3.0G3

3.0KW

7.1

SIT320-4.0G3

4.0KW

9

216*101*151

275*170*215

1.4

1.7

SIT320-5.5G3

5.5KW

12.6

SIT320-7.5G3

7.5KW

16.1

237*111*168

275*170*215

2.0

2.3

SIT320-11G3

11KW

25

249*143*172

320*225*265

3.0

3.5


Model

SIT310

Display

LED

Power

0.75-5.5KW

OEM

Accepted

Input voltage

 AC 220V/ AC 380V

Warranty

18 months

Input frequency

50Hz/60Hz

Certification

CE

Output current

4-13A

Output waveform

Pure Sine Wave Output

Output frequency

0-500hz

Output Type

Triple, Multiple

Type

AC-DC-AC

Control Mode

VF control

Application industry

Textile equipment, ceramic   equipment, water supply equipment, Printing Equipment, stone equipment, food   equipment, fan equipment,

Conveyor belt equipment,   woodworking equipment, industrial washing machine, ect.

Functions & features

1. General   high-performance

2. Multi functional, low noise

3. V/F control

4. Quick response and precise   control of torque

5. Built-in PID controller

6. Simple PLC

7.17 Fault Monitoring

8. Rich I/O terminals

9. Multiple speed setting   methods

10. Standard MODBUS   communication protocol

Protection systems

Overcurrent protection

Phase loss protection

Overvoltage protection

Earth leakage protection

Output short circuit protection
