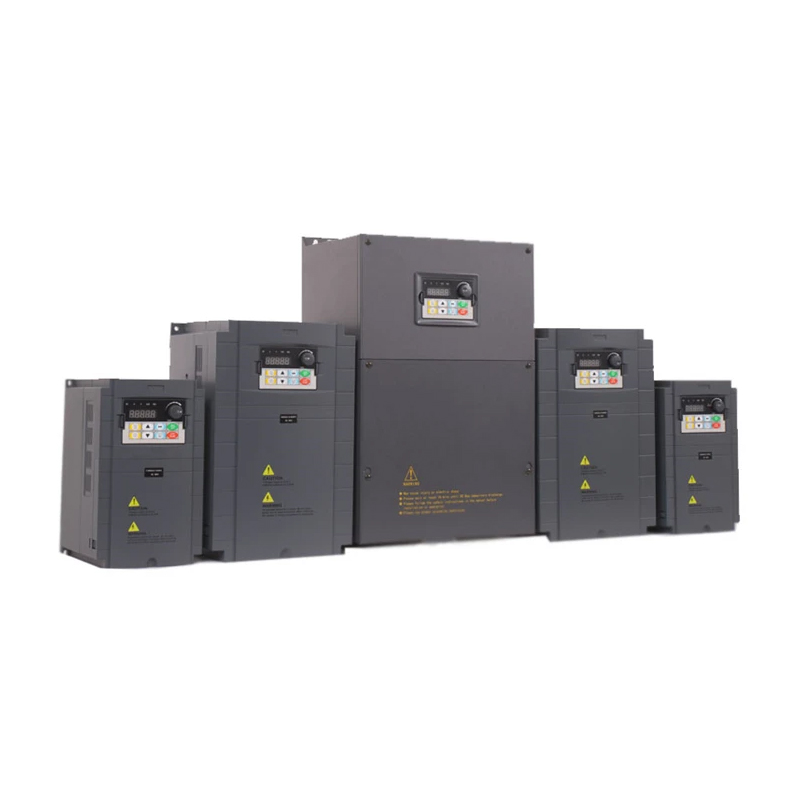

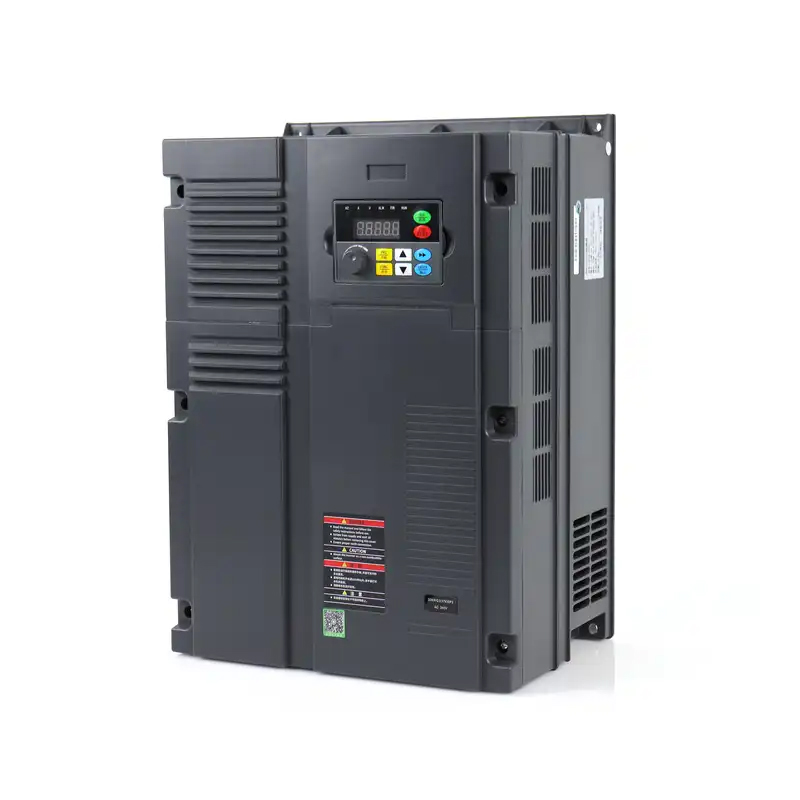

High-Performance Vector Inverter 720 Series
    发布时间: 2023-12-16 22:53

The heat dissipation air duct is completely sealed, with strong environmental resistance, good heat dissipation effect and excellent performance;

Possess brake, RS485 communication function, temperature protection and other functions;

Current vector control algorithm realizes high starting torque and stable low torque output;

Integrates a wealth of industry application software functions to facilitate the realization of various on-site control requirements:

The protection function is complete, with functions such as output phase loss, over-current, over-voltage, overload, over-temperature, etc., to maximize the safety of the motor and frequency converter;

Three control modes: V/F, SVC open-loop vector and FVC closed-loop vector, large torque output, strong starting ability with load.

High-Performance Vector Inverter 720 Series

•Universal High-Performance Vector Inverter

a)The heat dissipation air duct is completely sealed, with strong environmental resistance, good heat dissipation effect and excellent performance;

b)Possess brake, RS485 communication function, temperature protection and other functions;
c)Current vector control algorithm realizes high starting torque and stable low torque output;
d)Integrates a wealth of industry application software functions to facilitate the realization of various on-site control requirements:
e)The protection function is complete, with functions such as output phase loss, over-current, over-voltage, overload, over-temperature, etc., to maximize the safety of the motor and frequency converter;
f)Three control modes: V/F, SVC open-loop vector and FVC closed-loop vector, large torque output, strong starting ability with load.








Series

Power section

Input voltage
    3PH

Input frequency

The output
    voltage  3PH

Output
    frequency

Output
    current

Gross
    weight (KG)

Net
    weight(KG)

Carton size
    (length*width*height)

SIT720G3-
    Three phase

0.75KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

2.1A

1.3

1.1

225*170*200

1.5KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

3.8A

1.3

1.1

225*170*200

2.2KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

5.1A

1.3

1.1

225*170*200

4KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

9.0A

2.7

2.2

290*210*260

5.5KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

13A

2.7

2.2

290*210*260

7.5KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

17A

3.6

3.1

320*220*270

11KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

25A

3.8

3.3

320*220*270

15KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

32A

6.5

5.8

430*300*290

18.5KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

37A

6.7

5.8

430*300*290

22Kw

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

45A

6.8

5.8

430*300*290

30KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

60A

11.8

10.6

500*390*310

37KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

75A

11.8

10.6

500*390*310

45KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

90A

25

23

600*420*360

55KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

110A

25

23

600*420*360

75KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

152A

45

39

760*490*360

90KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

176A

46

40

760*490*360

110KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

210A

48

43

760*490*360

132KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

253A

71

61

870*610*510

160KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

304A

74

64

870*610*510

185KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

340A

74

64

870*610*510

200KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

380A

137

117

1040*700*570

220KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

426A

137

117

1040*700*570

250KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

465A

137

117

1040*700*570

280KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

520A

140

120

1040*700*570

315KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

585A

205

174

1310*870*590

355KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

650A

205

174

1310*870*590

400KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

725A

210

179

1310*870*590

450KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

820A

212

181

1310*870*590

500KW

AC 380-440V

50-60HZ

AC 0-440V

0-500HZ

900A

212

181

1310*870*590


Series

Power section

Input voltage
    3PH

Input frequency

The output
    voltage 3PH

Output
    frequency

Output
    current

Gross
    weight

Net
    weight(KG)

Carton size
    (length*width*height)

720S1-single

    phase

0.75KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

3.8A

1.3

1.1

225*170*200

1.5KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

7.0A

1.3

1.1

225*170*200

2.2KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

9.6A

1.3

1.1

225*170*200

4.0KW

AC220-240V

50-60HZ

AC 0-240V

0-500HZ

17A

3.5

3.0

320*220*270

5.5KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

25A

3.5

3.0

320*220*270

720S3-Three

    phase

2.2KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

9.0A

1.3

1.1

225*170*200

4.0KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

17A

3.5

3.0

320*220*270

5.5KW

AC220-240V

50-60HZ

AC 0-240V

0-500HZ

25A

3.5

3.0

320*220*270

7.5KW

AC220-240V

50-60HZ

AC 0-240V

0-500HZ

32A

6.0

5.3

430*300*290

11KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

45A

6.1

5.4

430*300*290

15KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

60A

10.9

9.7

500*390*310

18.5KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

75A

11.1

9.9

500*390*310

22KW

AC220-240V

50-60HZ

AC 0-240V

0-500HZ

80A

11.1

9.9

500*390*310

30KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

110A

25.0

23

600*420*360

55KW

AC 220-240V

50-60HZ

AC 0-240V

0-500HZ

210A

48

43

760*490*360

Tems

SIT720-15G3 (380V15KW)

SIT720-18.5G3 (380V18.5KW)

SIT720-22G3 (380V22KW)

SIT720-30G3 (380V30KW)

Power

20hp/15kw

25hp/18.5kw

30hp/22kw

40hp/30kw

Input voltage

3PH AC 380v-440v

3PH AC 380v-440v

3PH AC 380v-440v

3PH AC 380v-440v

Output voltage

3PH AC 0-440v

3PH AC 0-440v

3PH AC 0-440v

3PH AC 0-440v

Input frequency

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Output current

32A

37A

45A

60A

Output frequency

0-500hz

0-500hz

0-500hz

0-500hz

Type of output

3 phase

3 phase

3 phase

3 phase

Type

AC-DC-AC

AC-DC-AC

AC-DC-AC

AC-DC-AC

Control Mode

VF control

Display

LED

Certification

Output Type

Triple, Multiple

OEM

Yes

CE

Output waveform

Pure Sine Wave Output

Warranty

3months-1year


Application industry

Textile equipment, ceramic   equipment, water supply equipment, Printing Equipment, stone equipment, food   equipment, fan equipment,

Conveyor belt equipment,   woodworking equipment, industrial washing machine, ect.

Functions & features

1. Low speed high torque

2. Heavy duty, full power

3. Software start and stop,   less impact, more stable

4. Stepless speed regulation,   free to change speed

5. Fast, accurate and stable,   PID pressure temperature control

6. Flexible control, forward   andreverse jog emergency stop

7. Comprehensive functions,   16-speed, simple PLC.

Protection systems

Overcurrent protection

Phase loss protection

Overvoltage protection

Earth leakage protection

Output short circuit protection
