Product No. : 6RA7085-6DV62-0

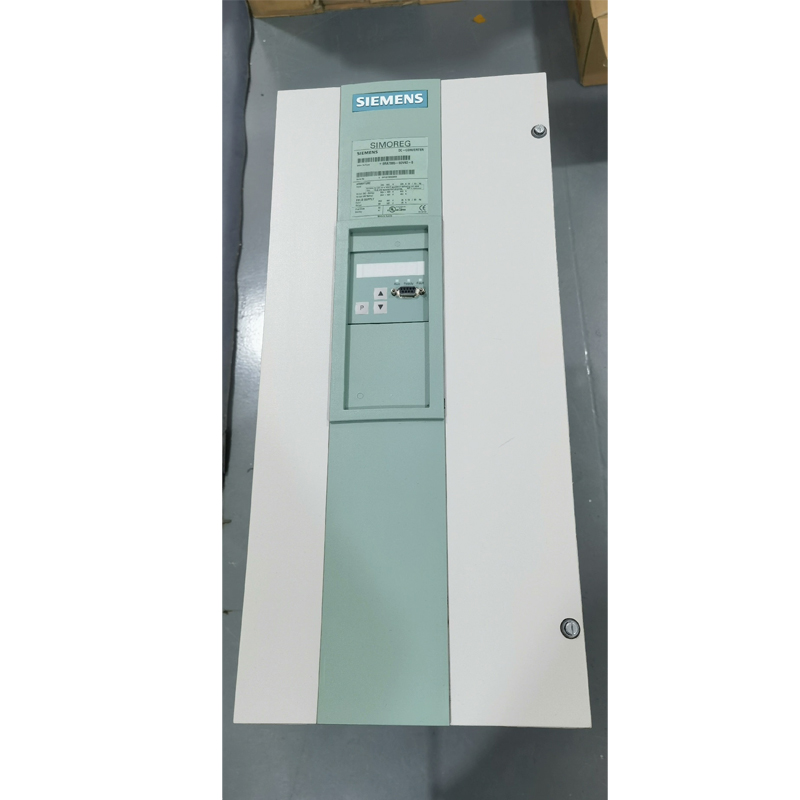

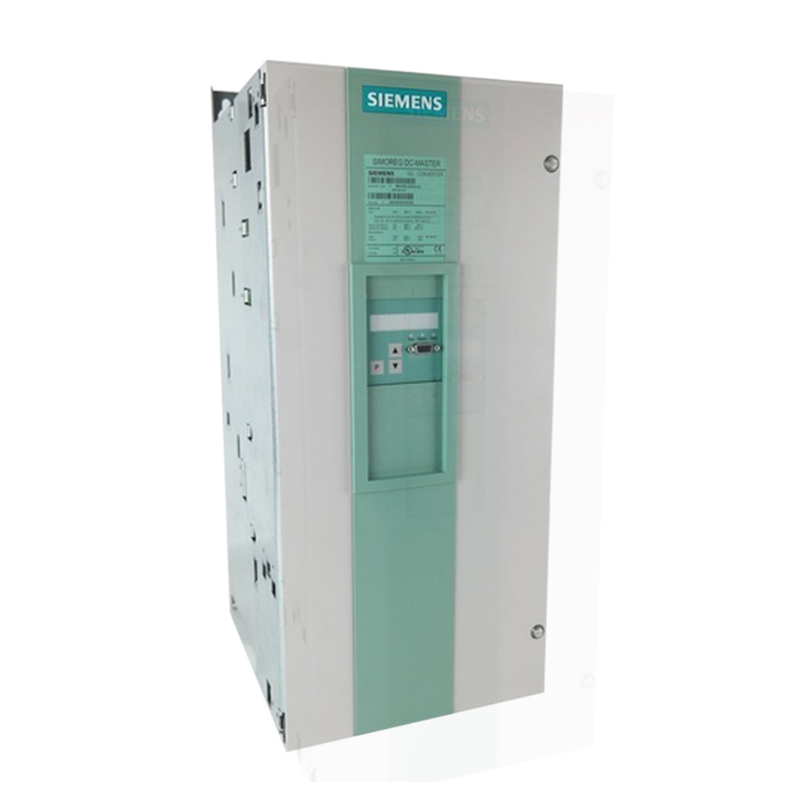

Product type : SIMOREG DC Master Converter

SIMOREG DC Master Converter, with microprocessor for 4-quadrant drives Circuit (B6) A (B6) C

Converter model : 70 = SIMOREG DC-MASTER

Rated DC currents and cooling : 85 = =600...... <680

Thyristor construction and fuse assembly : 6 = Thyristor modules

Rated supply voltage : D = 400V

Converter connection : V = (B6) A (B6) C (4Q)

Closed-loop control : 6 = 4Q digital

Closed-loop control : 2 = 1Q digital

Input: 400V 3AC, 498A

controllable: Field rectifier D420/600 MREQ-GEGF6V62

Output: 420 V DC, 600A

Output US-Rating: 420 V DC, 450A

Field-input. 400V-output. 325 V, 25A

Storage and transport temperature °C : – 25 to +70

Degree of protection DIN EN 60529 : IP00

Dimensions (HxWxD) cm : 62.5 x 26.8 x 31.8

Weight : 35 Kg

Shipping weight : 40 Kg
