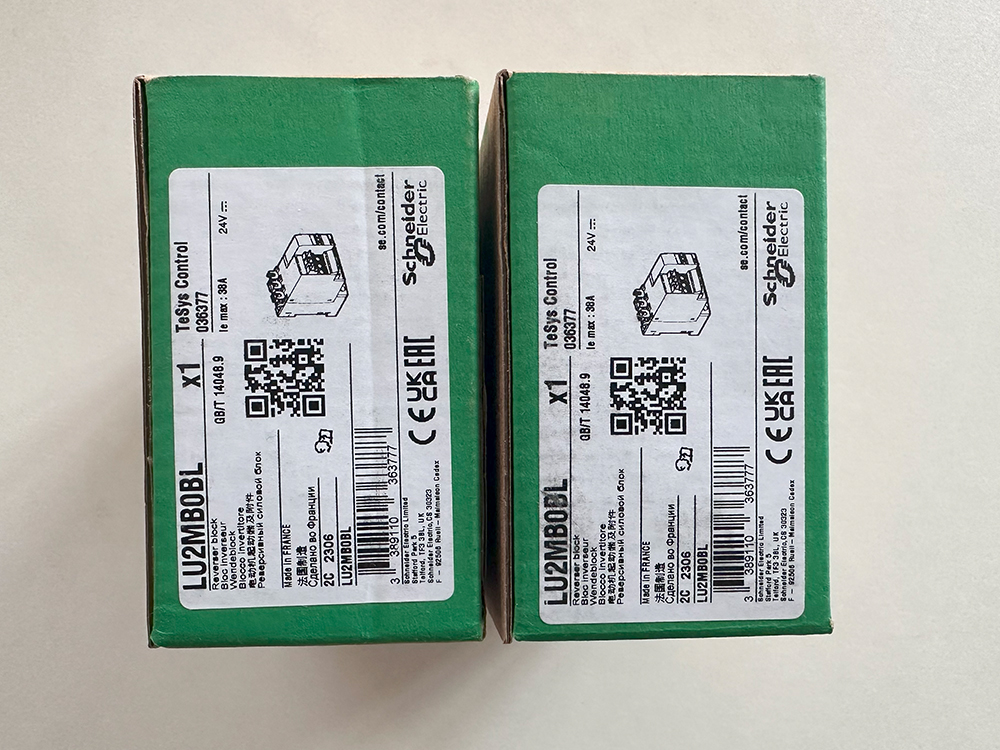

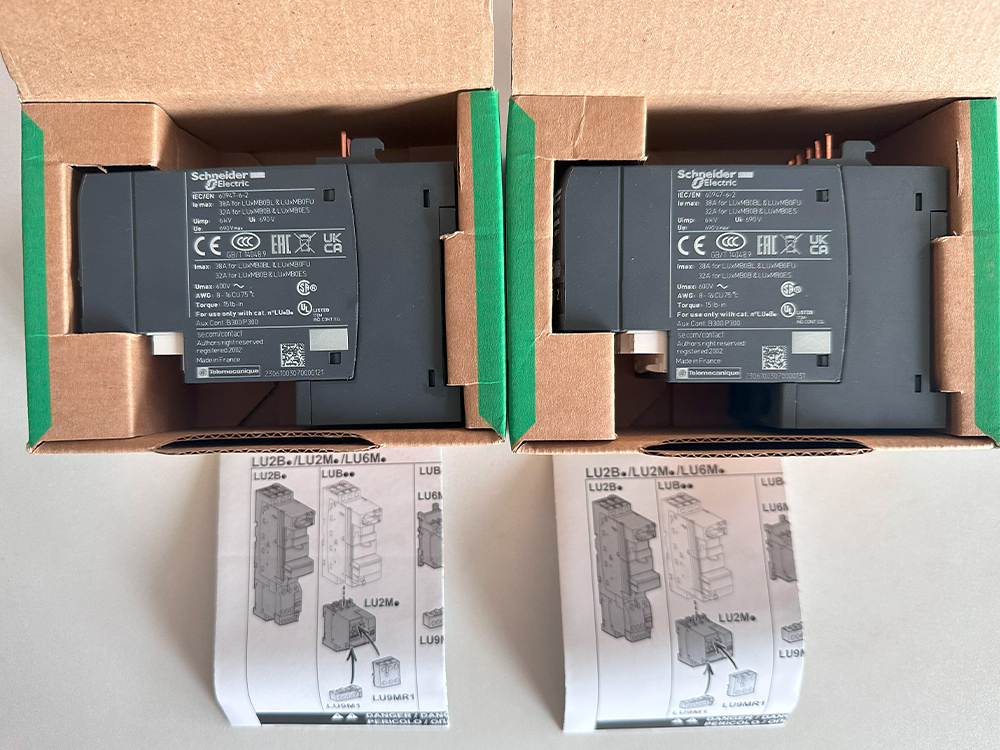

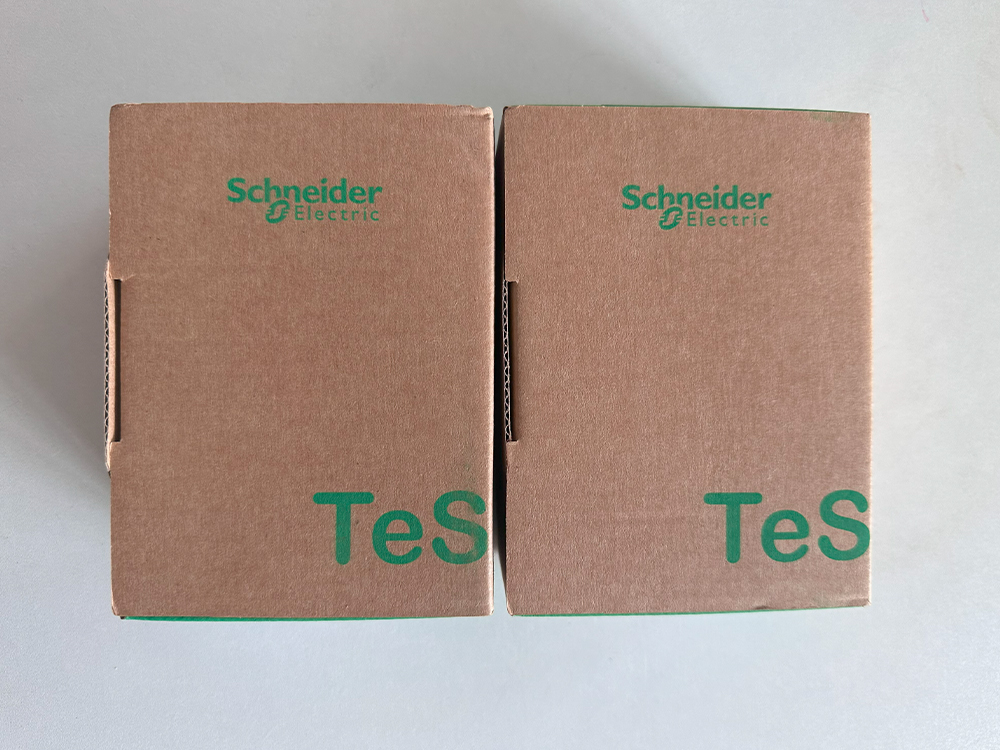

Schneider Electric LU2MB0BL Picture
Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 24VDC
| Range | TeSys |
|---|---|
| Device short name | LU2MB |
| Product or Component Type | Reverser block |
| Device mounting | Direct mounting |
| Device Application | Motor control |
| [Ie] rated operational current | 38 A |
| [Uc] control circuit voltage | 24 V DC |
| Current consumption | 120 mA 24 V DC I maximum while closing 120 mA 24 V DC I rms sealed |
[Ue] rated operational voltage 690 V AC power circuit Network frequency 40...60 Hz Inrush restraint duration 25 ms AC
15 ms DCOperating time 150 ms with change of direction
75 ms without change of directionStandards EN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrierProduct Certifications CE
UL
CSA
CCC
EAC
ASEFA
ATEX
Marine[Ui] rated insulation voltage 690 V IEC 60947-6-2
600 V UL 60947-4-1
600 V CSA C22.2 No 60947-4-1[Uimp] rated impulse withstand voltage 6 kVIEC 60947-6-2 Fixing mode Plug-in Connections - terminals Control circuit screw clamp terminals 1 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end
Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end
Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid
Control circuit screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end
Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end
Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid
Power circuit screw clamp terminals 1 0.002…0.02 in² (1…10 mm²) 0.2 in (4 mm)) rigid
Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end
Power circuit screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) 0.2 in (4 mm)) flexible without cable end
Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end
Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) rigid
Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) 0.2 in (4 mm)) flexible without cable endTightening torque Control circuit 7.08…10.6 lbf.in (0.8…1.2 N.m) flat 0.2 in (5 mm)
Control circuit 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips No 2 0.2 in (5 mm)
Power circuit 16.8…22.1 lbf.in (1.9…2.5 N.m) flat 0.2 in (6 mm)
Power circuit 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 0.2 in (6 mm)Width 1.8 in (45 mm) Height 3.1 in (80 mm) Depth 4.1 in (105 mm) Product Weight 0.9 lb(US) (0.4 kg) Compatibility code LU2MB IP degree of protection IP20 IEC 60947-1 front panel and wired terminals)
IP20 IEC 60947-1 other faces)
IP40 IEC 60947-1 front panel outside connection zone)Protective treatment TH IEC 60068 Ambient air temperature for operation -13…140 °F (-25…60 °C) with LUCM
-13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCDAmbient air temperature for storage -40…185 °F (-40…85 °C) Fire resistance 1760 °F (960 °C) parts supporting live components IEC 60695-2-12
1202 °F (650 °C) IEC 60695-2-12Operating altitude 6561.68 ft (2000 m) Shock resistance 10 gn power poles open IEC 60068-2-27
15 gn power poles closed IEC 60068-2-27Vibration resistance 2 gn 5…300 Hz) power poles open IEC 60068-2-27
4 gn 5…300 Hz) power poles closed IEC 60068-2-27Resistance to electrostatic discharge 8 kV level 3, in open air IEC 61000-4-2
8 kV level 4, on contact IEC 61000-4-2Resistance to radiated fields 9.1 V/m (10 V/m) level 3 IEC 61000-4-3 Resistance to fast transients 2 kV 3 serial link IEC 61000-4-4
4 kV 4 all circuits except for serial link IEC 61000-4-4Immunity to radioelectric fields 10 V IEC 61000-4-6 Category US10I1122399 Discount Schedule 0I11 GTIN 3389110363777 Returnability Yes Country of origin FR Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.12 in (13 cm) Package 1 Width 2.24 in (5.7 cm) Package 1 Length 3.74 in (9.5 cm) Package 1 Weight 13.9 oz (393 g) Unit Type of Package 2 S02 Number of Units in Package 2 12 Package 2 Height 5.91 in (15 cm) Package 2 Width 11.81 in (30 cm) Package 2 Length 15.75 in (40 cm) Package 2 Weight 11.021 lb(US) (4.999 kg)
