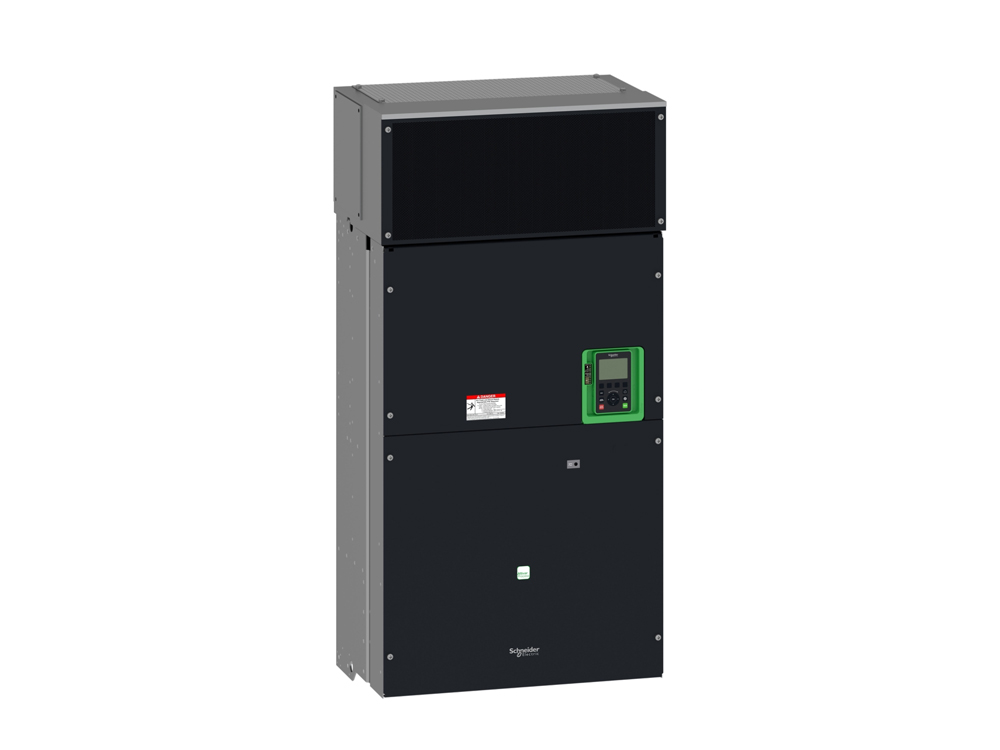

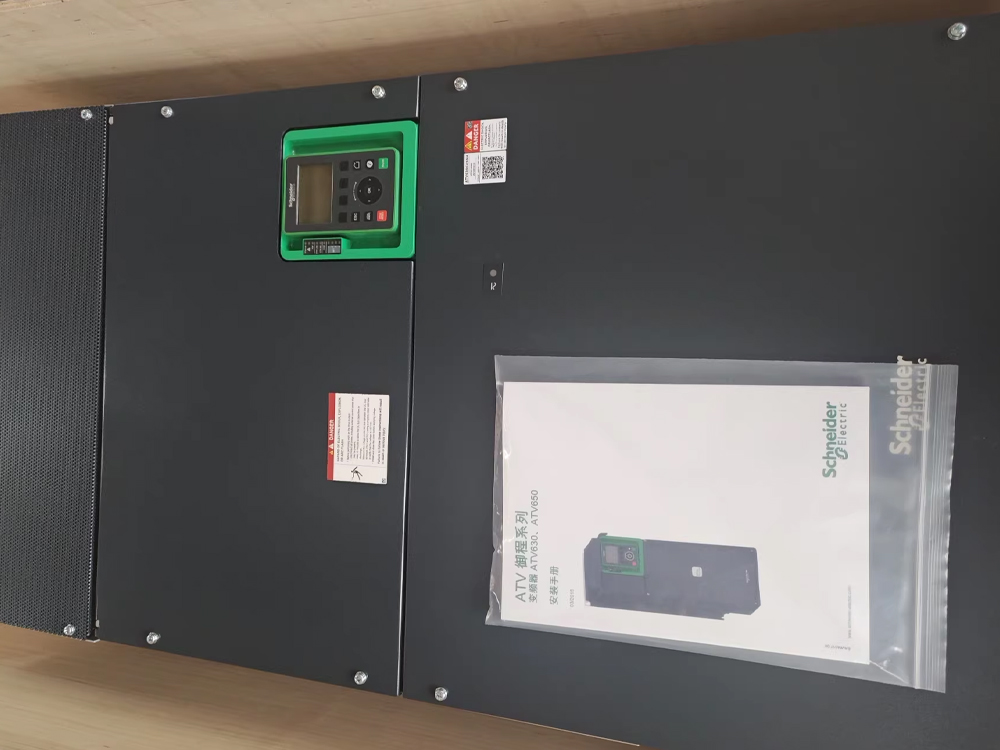

Variable Speed Drive, Altivar Process ATV600, ATV630, 250kW, 400hp, 380 to 480V, IP00
ATV630C25N4
| Range of Product | Altivar Process ATV600 |
|---|---|
| Product Specific Application | Process and utilities |
| Product or Component Type | Variable speed drive |
| Variant | Standard version |
| Device short name | ATV630 |
| Mounting Mode | Wall mount |
| Communication Port Protocol | Modbus TCP Modbus serial Ethernet |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| [Us] rated supply voltage | 380...480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 481.0 A |
| IP degree of protection | IP21 |
| Product destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated 164.04 ft (50 m) IEC 61800-3 category C3 |
| IP degree of protection | IP00IEC 61800-5-1 IP00IEC 60529 IP21 with kit VW3A9113)IEC 61800-5-1 IP21 with kit VW3A9113)IEC 60529 |
| type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 250 kW normal duty) 220 kW heavy duty) |
| Maximum Horse Power Rating | 400 hp normal duty 300 hp heavy duty |
| Line current | 451 A 380 V normal duty) 366 A 480 V normal duty) 365 A 380 V heavy duty) 301 A 480 V heavy duty) |
| Continuous output current | 481 A 2.5 kHz normal duty 387 A 2.5 kHz heavy duty |
| Speed drive output frequency | 0.1…500 Hz |
| Safety function | STO (safe torque off) SIL 3 |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
Discrete input number 8 Discrete input type DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) Discrete input logic 16 preset speeds Discrete output number 0 Discrete output type Relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Relay outputs R1A, R1B, R1C 30 V DC 3000 mA
Relay outputs R2A, R2C 250 V AC 5000 mA
Relay outputs R2A, R2C 30 V DC 5000 mA
Relay outputs R3A, R3C 250 V AC 5000 mA
Relay outputs R3A, R3C 30 V DC 5000 mAAnalogue input number 3 Analogue input type AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits
AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bitsAnalogue output number 2 Analogue output type Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
Software-configurable current AQ1, AQ2 0...20 mA 10 bits
Software-configurable current DQ-, DQ+ 30 V DC
Software-configurable current DQ-, DQ+ 100 mARelay output number 3 Relay output type Configurable relay logic R1 fault relay NO/NC 100000 cycles
Configurable relay logic R2 sequence relay NO 100000 cycles
Configurable relay logic R3 sequence relay NO 100000 cyclesMaximum switching current Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC
Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCMinimum switching current Relay output R1, R2, R3 5 mA 24 V DC Phase 3 phase Physical interface Ethernet
2-wire RS 485Method of access Slave Modbus TCP Transmission Rate 10, 100 Mbits
4800 bps, 9600 bps, 19200 bps, 38.4 KbpsTransmission frame RTU Output voltage <= power supply voltage Permissible temporary current boost 1.1 x In 60 s normal duty)
1.5 x In 60 s heavy duty)Data format 8 bits, configurable odd, even or no parity Type of polarization No impedance Frequency resolution Display unit 0.1 Hz
Analog input 0.012/50 HzElectrical connection Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
Line side screw terminal 4 x 185 mm² 3 x 350 kcmil
Motor screw terminal 4 x 185 mm² 3 x 350 kcmilConnector type RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
RJ45 on the remote graphic terminal)Modbus serialExchange mode Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP Number of addresses 1…247 Modbus serial Supply External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protectionLocal signalling for local diagnostic 3 LEDs
for embedded communication status 3 LEDs (dual colour)
for communication module status 4 LEDs (dual colour)
for presence of voltage 1 LED (red)Input compatibility DI1...DI6 discrete input level 1 PLC IEC 61131-2
DI5, DI6 discrete input level 1 PLC IEC 65A-68
STOA, STOB discrete input level 1 PLC IEC 61131-2Discrete input logic Positive logic (source) DI1...DI8), < 5 V, > 11 V
Negative logic (sink) DI1...DI8), > 16 V, < 10 VSampling duration 2 ms +/- 0.5 ms DI1...DI4) - discrete input
5 ms +/- 1 ms DI5, DI6) - discrete input
5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input
10 ms +/- 1 ms AO1) - analog outputAccuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog outputLinearity error AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
AO1, AO2 +/- 0.2 % analog outputRefresh time Relay output R1, R2, R3)5 ms +/- 0.5 ms) Isolation Between power and control terminals Variable speed drive application selection Building - HVAC compressor centrifugal
Food and beverage processing other application
Mining mineral and metal fan
Mining mineral and metal pump
Oil and gas fan
Water and waste water other application
Building - HVAC screw compressor
Food and beverage processing pump
Food and beverage processing fan
Food and beverage processing atomization
Oil and gas electro submersible pump (ESP)
Oil and gas water injection pump
Oil and gas jet fuel pump
Oil and gas compressor for refinery
Water and waste water centrifuge pump
Water and waste water positive displacement pump
Water and waste water electro submersible pump (ESP)
Water and waste water screw pump
Water and waste water lobe compressor
Water and waste water screw compressor
Water and waste water compressor centrifugal
Water and waste water fan
Water and waste water conveyor
Water and waste water mixerMotor power range AC-3 250…500 kW 380…440 V 3 phase
250…500 kW 480…500 V 3 phaseEnclosure mounting Wall mounted 4 quadrant operation possible False Asynchronous motor control profile Variable torque standard
Constant torque standard
Optimized torque modeSynchronous motor control profile Permanent magnet motor
Synchronous reluctance motorMaximum output frequency 500 kHz Acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s Motor slip compensation Automatic whatever the load
Adjustable
Not available in permanent magnet motor law
Can be suppressedSwitching frequency 2.5...8 kHz with derating factor
2...8 kHz adjustableNominal switching frequency 2.5 kHz Braking to standstill By DC injection Brake chopper integrated False Maximum Input Current per Phase 451.0 A Maximum output voltage 480.0 V Apparent power 279 kVA 480 V normal duty)
229 kVA 480 V heavy duty)Maximum transient current 529 A 60 s normal duty)
581 A 60 s heavy duty)Network Frequency 50-60 Hz Prospective line Isc 50 kA Base load current at high overload 387.0 A Base load current at low overload 481.0 A Power dissipation in W Forced convection 5773 W
Natural convection 606 W 380 V 2.5 kHzWith safety function Safely Limited Speed (SLS) False With safety function Safe brake management (SBC/SBT) False With safety function Safe Operating Stop (SOS) False With safety function Safe Position (SP) False With safety function Safe programmable logic False With safety function Safe Speed Monitor (SSM) False With safety function Safe Stop 1 (SS1) False With sft fct Safe Stop 2 (SS2) False With safety function Safe torque off (STO) True With safety function Safely Limited Position (SLP) False With safety function Safe Direction (SDI) False Protection type Thermal protection motor
Safe torque off motor
Motor phase break motor
Thermal protection drive
Safe torque off drive
Overheating drive
Overcurrent between output phases and earth drive
Overload of output voltage drive
Short-circuit protection drive
Motor phase break drive
Overvoltages on the DC bus drive
Line supply overvoltage drive
Line supply undervoltage drive
Line supply phase loss drive
Overspeed drive
Break on the control circuit driveQuantity per Set 1 Width 23.5 in (598 mm) Height 47.05 in (1195 mm) Depth 15.0 in (380 mm) Product Weight 447.5 lb(US) (203 kg) Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth Noise level 68 dB 86/188/EEC Pollution degree 2 IEC 61800-5-1 Vibration resistance 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6Shock resistance 15 gn 11 ms IEC 60068-2-27 Relative humidity 5…95 % without condensation IEC 60068-2-3 Ambient air temperature for operation 14…104 °F (-10…40 °C) (without derating)
104…140 °F (40…60 °C) (with derating factor)Operating altitude <= 3280.84 ft (1000 m) without derating
3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 mOperating position Vertical +/- 10 degree Product Certifications CSA
UL
TÜVMarking CE Standards UL 508C
IEC 61800-3
IEC 61800-3 environment 1 category C2
EN/IEC 61800-3 environment 2 category C3
IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1Maximum THDI <48 % full load IEC 61000-3-12 Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6Environmental class (during operation) Class 3C3 according to IEC 60721-3-3
Class 3S3 according to IEC 60721-3-3Maximum acceleration under shock impact (during operation) 60 m/s² at 11 ms Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3 Volume of cooling air 332862.7 Gal/hr(US) (1260 m3/h) Overvoltage category III Regulation loop Adjustable PID regulator Noise level 76 dB pollution degree 2 Ambient air transport temperature -40…158 °F (-40…70 °C) Ambient Air Temperature for Storage -13…158 °F (-25…70 °C) Category US1CP4E22207 Discount Schedule CP4E GTIN 3606481154729 Returnability No Country of origin CN Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 14.96 in (38.000 cm) Package 1 Width 23.54 in (59.800 cm) Package 1 Length 47.05 in (119.500 cm) Package 1 Weight 500.450 lb(US) (227.000 kg)
