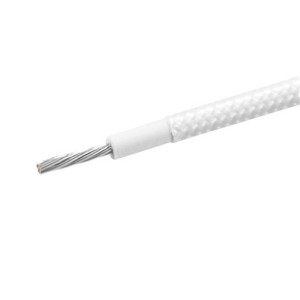

Silicone Rubber Insulated Braided Wire Ul3068
    发布时间: 2023-10-29 21:18
Silicone Rubber Insulated Braided Wire Ul3068

•TECHNICAL DATA

Nominal voltage: 300V

Temperature Range: -60℃~+150℃

OD. Tolerance: ±0.1MM

Conductor: Copper or Tinned Copper

Insulator: Silicone Rubber

Colours: Red-Black-White-Brown-Yellow-Green-Yellow/Green

Application:Used for heating source for lighting,electric machinery. air conditioning,oven,drying path,tauto ignition,and household appliances etc.


AWGStructure of   ConductorInsulationBraidedOverallConductor   Resistance
 No./mmThickness
    (mm)		Thickness
    (mm)		Diameter
    (mm)		 at   20℃Max
    Ω/km
167x0.500.390.1502.5814.6
1732x0.200.390.1502.4218.3
187x0.400.390.1502.2823.2
207x0.320.390.1502.0436.7
227x0.260.390.1501.8659.4
247x0.200.390.1501.6894.2
267x0.160.390.1501.56150
287x0.120.390.1501.14239
307x0.100.390.1501.08381
*Current ratings are based on a temperature rise of 40°C (single   wire in free air).
