•TECHNICAL DATA
Nominal voltage: 600V
Temperature Range: -65℃~+105℃
OD. Tolerance: ±0.1MM

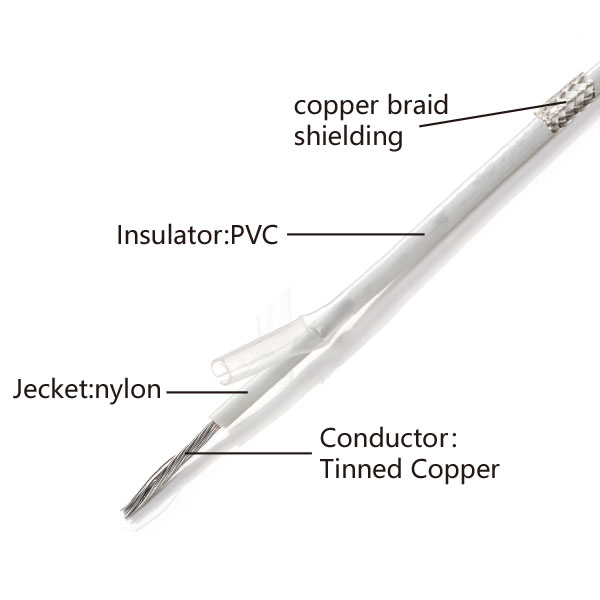

Conductor: Tinned
Copper
Insulator: PVC
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Application:Low
voltage wiring, high-speed road inductance wiring, lighting lamp, high pole
lamp and so on.
Sectional
Area mm² | Structure of Conductor | Insulation | Pleach | Outer | Packing |
No./mm | Thickness (mm) | Thickness (mm) | Diameter (mm) | M/coil |
0.2 | 12ｘ0.15 | 0.35 | 0.150 | 2.10 | 200 |
0.3 | 16ｘ0.15 | 0.35 | 0.150 | 2.20 | 200 |
0.4 | 23ｘ0.15 | 0.35 | 0.150 | 2.40 | 200 |
0.5 | 28ｘ0.15 | 0.35 | 0.150 | 2.50 | 200 |
0.6 | 19ｘ0.20 | 0.35 | 0.150 | 2.50 | 200 |
0.75 | 19ｘ0.23 | 0.35 | 0.150 | 2.65 | 200 |
1.0 | 19ｘ0.26 | 0.35 | 0.150 | 2.80 | 200 |
1.2 | 19ｘ0.28 | 0.40 | 0.150 | 3.00 | 100 |
1.5 | 19ｘ0.32 | 0.40 | 0.150 | 3.20 | 100 |
2.0 | 19ｘ0.37 | 0.40 | 0.150 | 3.45 | 100 |
2.5 | 49ｘ0.26 | 0.40 | 0.150 | 4.05 | 100 |
3 | 49ｘ0.28 | 0.45 | 0.150 | 4.20 | 100 |
4 | 77ｘ0.26 | 0.45 | 0.150 | 4.80 | 100 |
5 | 98ｘ0.26 | 0.45 | 0.180 | 5.20 | 100 |
6 | 77ｘ0.32 | 0.50 | 0.180 | 5.60 | 100 |
8 | 98ｘ0.32 | 0.50 | 0.180 | 6.10 | 100 |
10 | 126ｘ0.32 | 0.50 | 0.180 | 6.70 | 100 |
13 | 133ｘ0.36 | 0.60 | 0.220 | 7.60 | 100 |
16 | 209ｘ0.32 | 0.60 | 0.220 | 8.40 | 100 |
20 | 247ｘ0.32 | 0.60 | 0.220 | 9.00 | 100 |
25 | 209ｘ0.39 | 0.60 | 0.220 | 9.80 | 100 |
35 | 285ｘ0.39 | 0.60 | 0.220 | 11.00 | 100 |
