High Voltage Wire AGG
    发布时间: 2023-10-29 21:18
High Voltage Wire AGG

•TECHNICAL DATA

Nominal voltage: 5kv,10kv,15kv,20kv,25kv,30kv,50kv,100kv

Temperature Range: -60℃~+200℃

OD. Tolerance: ±0.1MM

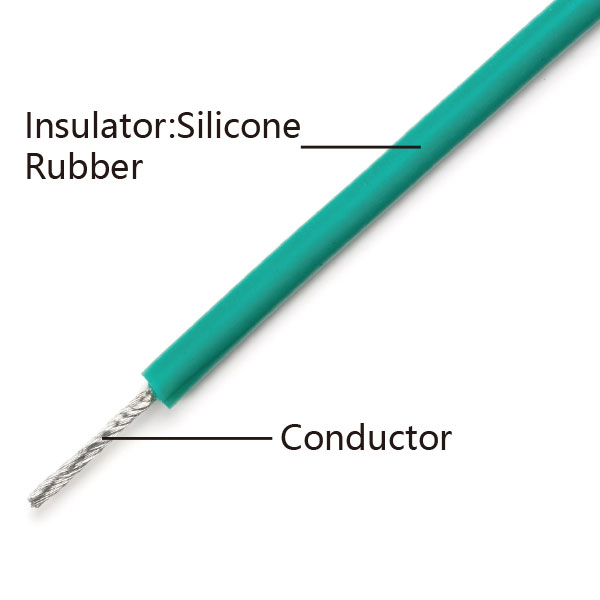

Conductor: Tinned Copper

Insulator: Silicone

Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

Application:High-voltagecabinet, power systems, high voltage electric machineries, television receivers, transformers, high-voltage cable for electronic instruments etc.


Sectional
    Area mm²		Structure of   ConductorOuter Diameter(mm)
 No./mm5kv10kv15kv20kv25kv30kv
0.27/0.202.4-2.72.9-3.23.7-4.03.9-4.25.8-6.26.5-7.0
0.57/0.303.203.6004.305.206.307.6
1.019/0.264.104.5005.206.007.108.5
Voltage
    kv		Sectional Area
    mm		Insulation   Thickness
    mm
50.2-2.51.0
120.2-2.51.3
150.2-2.51.7
200.2-2.51.8
250.2-2.52.8
300.2-2.53.2
400.2-2.54.2
500.2-2.55.5
600.2-2.57.0
